50 ft Pressure Washer Hose Reel

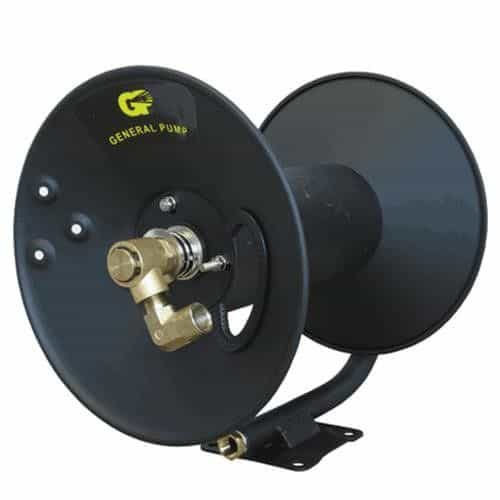

The General Pump D30001 Hose Reel makes it easy and convenient to quickly pull out and rewind hose at your pressure wash jobs. It holds up to 50' of 3/8" pressure washing hose and is rated for applications up to 4000 PSI. The D30001 is made of solid steel with a tough powder coat finish, so it's ideal for very demanding environments that professional pressure washers face regularly. This manual hand-crank rewind reel includes a full flow swivel brass joint and a mounting base for easy installation on trucks or in shops. Keeping hose organized prevents it from kinking and getting damaged, which helps avoid leaks and vastly increases the lifespan of the hose.

D30001 Specifications and Details

• Holds 50ft of 3/8" pressure washer hose
• 4000 PSI maximum pressure rating
• 3/8" FNPT inlet
• 3/8" FNPT outlet
• 225° Fahrenheit maximum temperature
• Solid steel construction
• Powder coated finish - Resists rust and corrosion
• Includes mounting base
• Direct hand-crank rewind with locking pin
• Full flow swivel brass joint

Assembly Instructions

1. Connect the handle to the flange. Nuts go on handle side of flange.
2. Use (4) 3/8" or 10 mm bolts when securing the hose reel to ceiling or wall.
3. Use the provided nuts, bolts and mounting bracket when securing hose reel to a cart.
4. Use thread sealant (not provided) on inlet threads and on outlet hose (not provided).
5. The hose reel is ready for operation.
